Reinforced clutch with 3 plates for all manually shifted Sachs engines of the 503, 50/2, 50/3, 50/4 series.

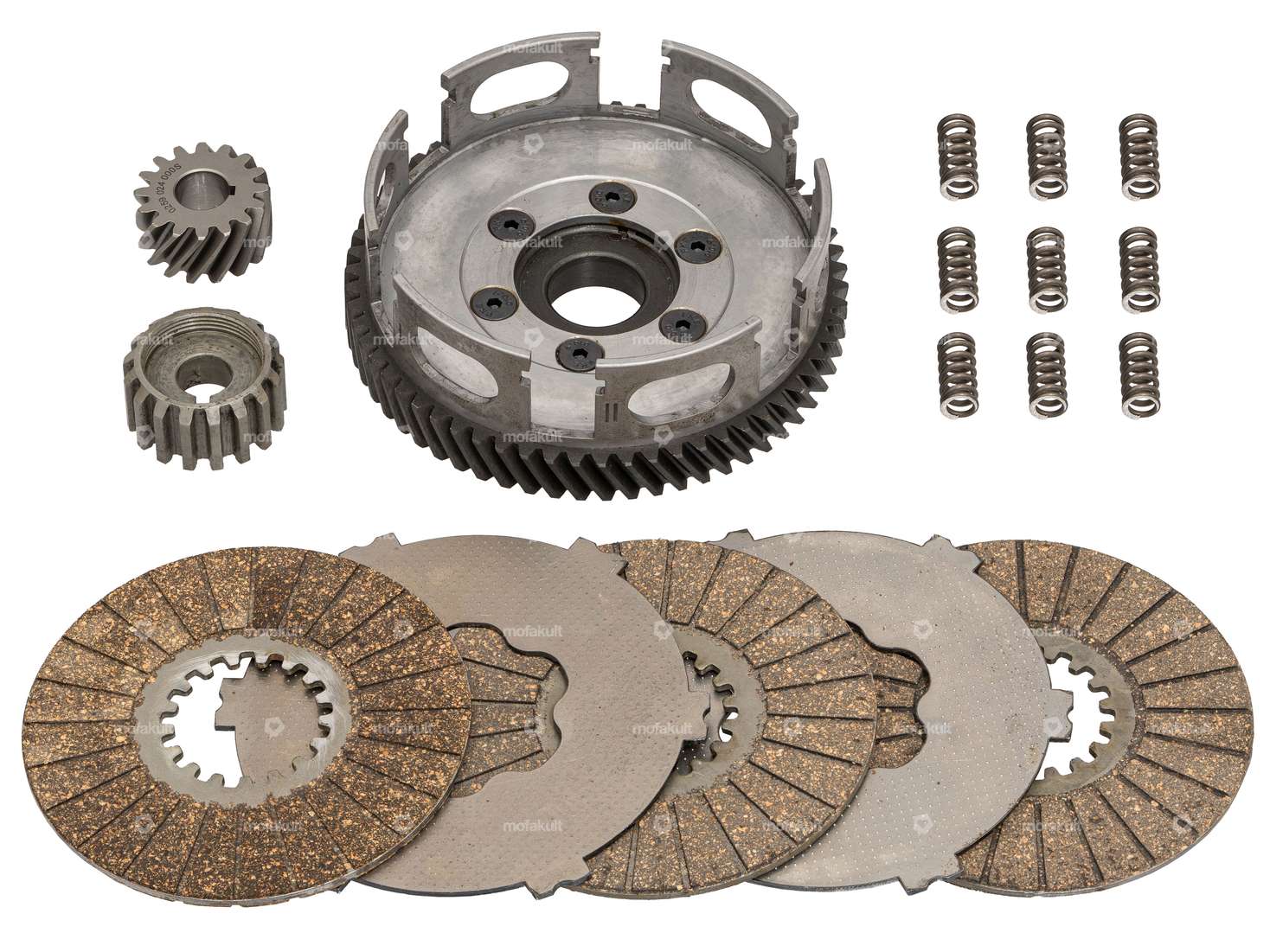

The clutch set consists of the following individual parts:

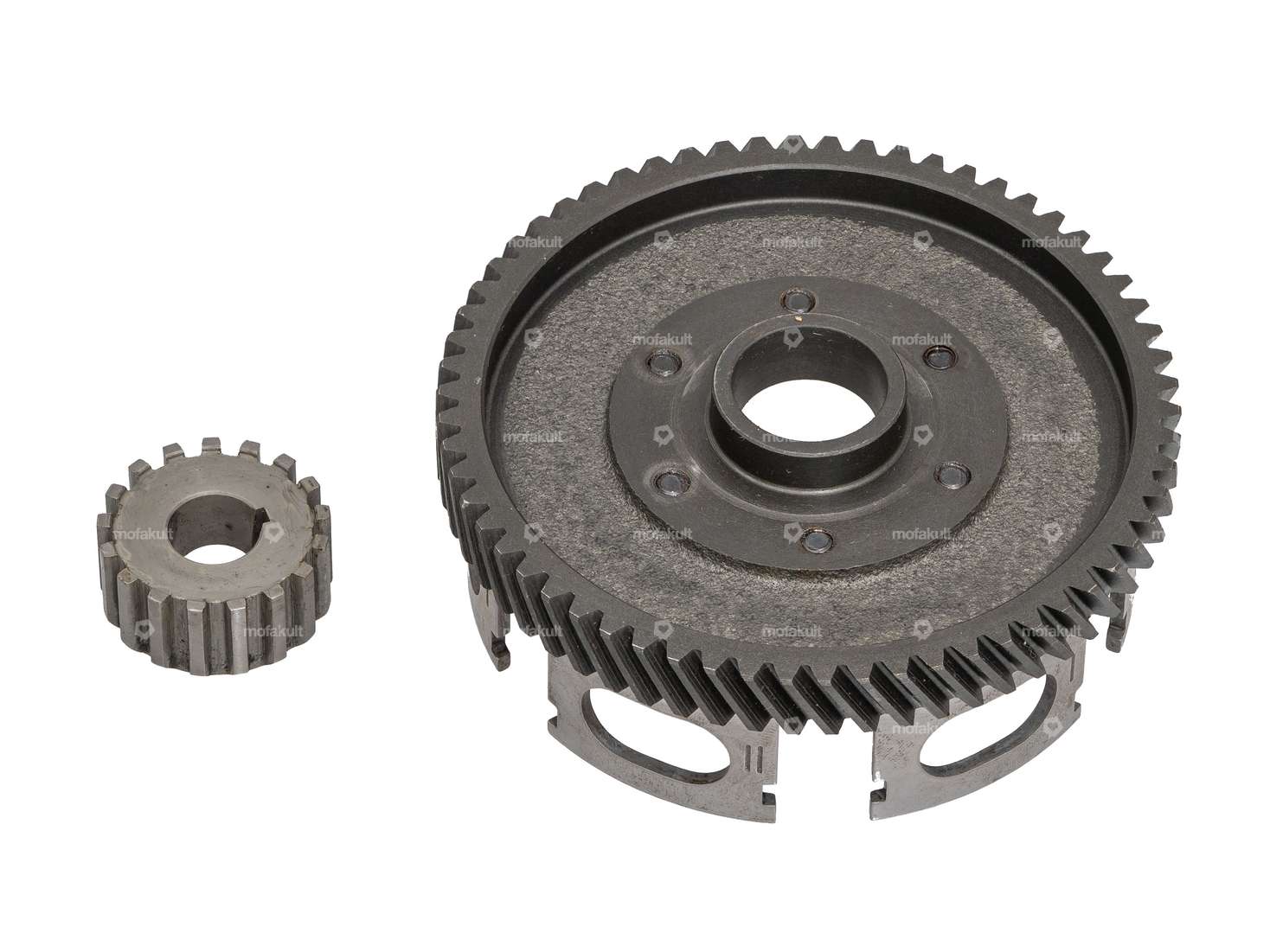

- Clutch basket
- Drive gear wheel
- Clutch hub
- 3 pcs. Friction plates (3.3 mm)
- 2 pcs. Intermediate plates (steel)
- 9 pcs. Clutch springs
The clutch can be set to two different levels:
- When using 3.3 mm friction plates at level «II»
- When using 3.8 mm friction plates at level «I»
No further adjustments need to be made to the engine for installation.
A quality product manufactured in Europe.
Details
| Manufacturer | Made in Europe |
| Material | Steel, Composite materials |
| Number of springs | 9 pcs |
| Recording type | Interlocking |
| Number of slats | 3 pcs |
| Ø inside | 29.6 mm, 35.3 mm |
| Thickness | 3.8 mm |
| Ø outside | 110.5 mm |
| Area of application | Tuning |
Suitable for the following models
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 PS, DE) 50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) 503 - 2AL / 2BL |
