For: Piaggio

22406

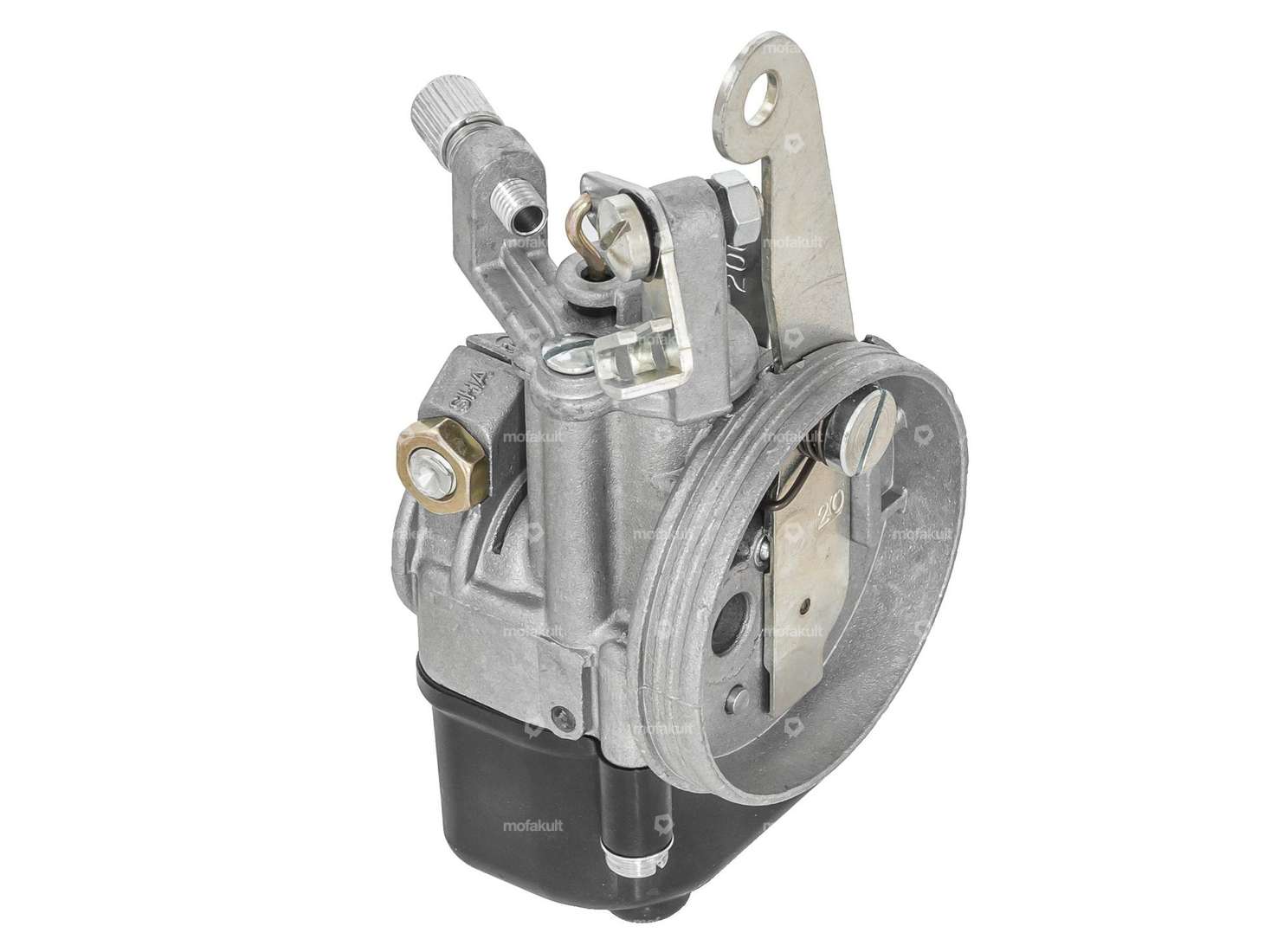

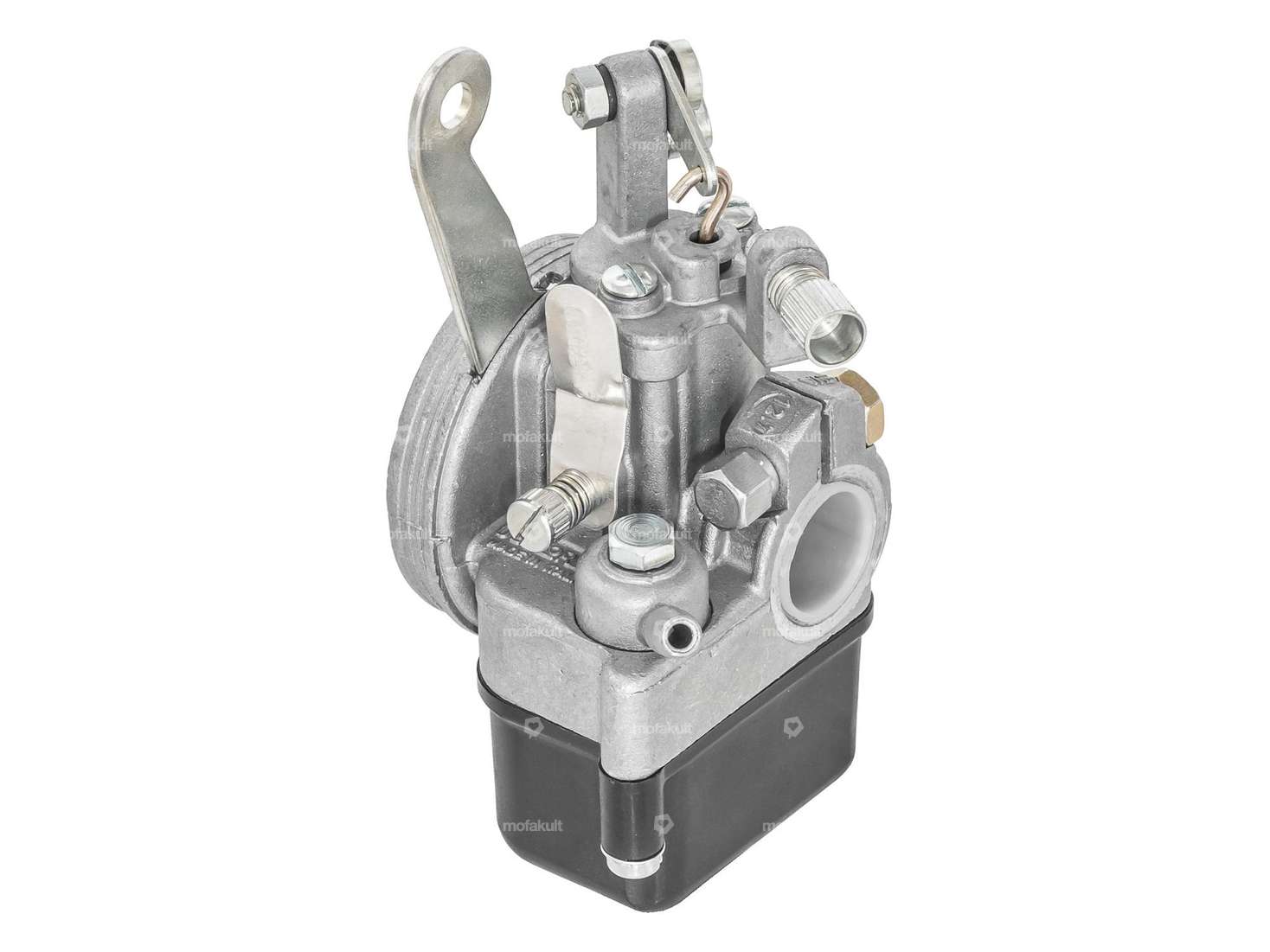

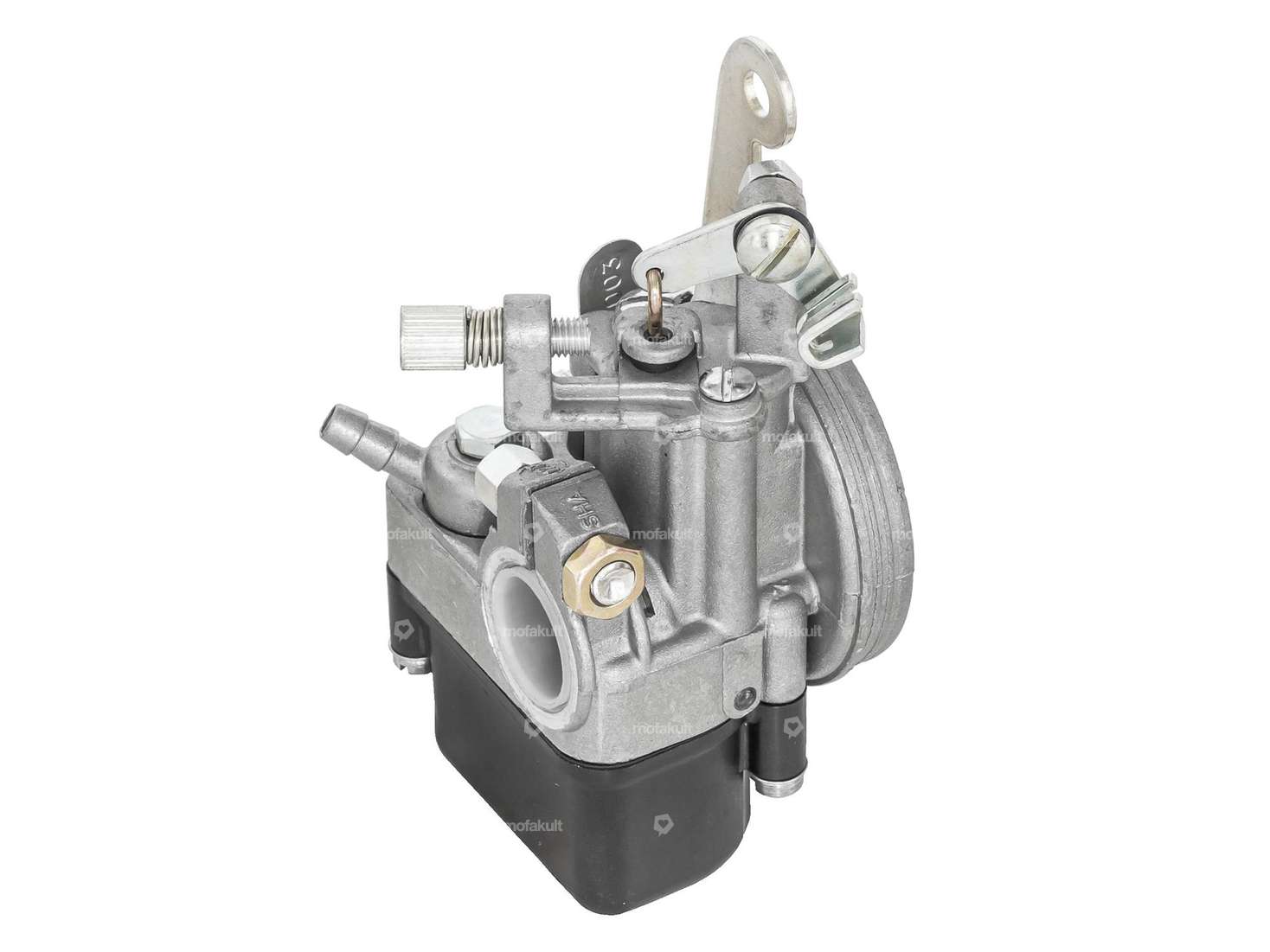

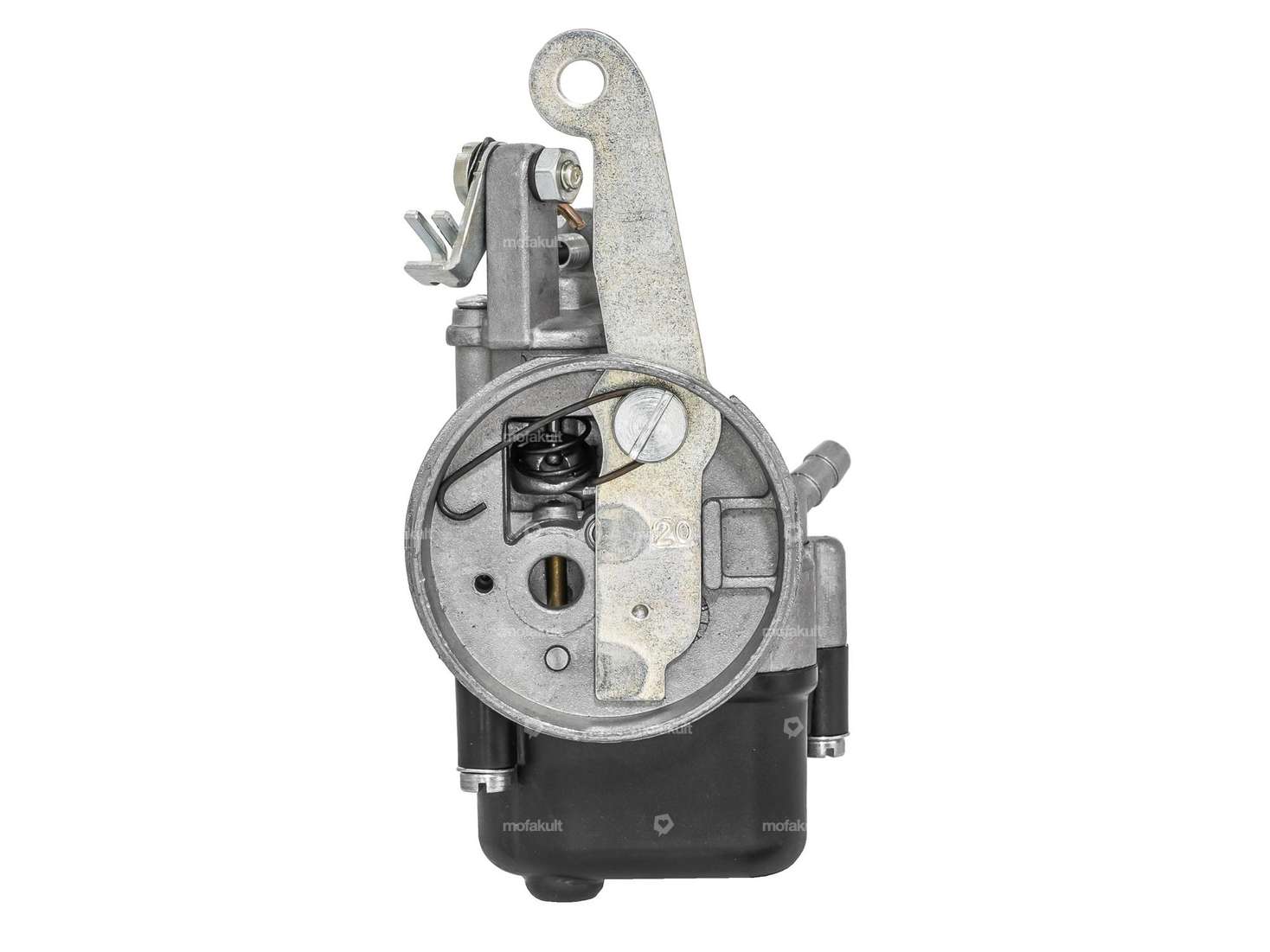

12/7 SHA carburetor original | Piaggio SI

Home
| Motor
| Carburetor & intake system
| Carburetor
EUR 105,40

Incl. 20% VAT.

The original 12 / 7 SHA carburetor impresses with its compact design and fits your Piaggio Si moped, moped.

The tuning carburetor has a manually operated choke / starter slide. The starter flap engages by pressing it down and is only returned to its original position by actuating the throttle cable (full throttle).

Carburetor type: SHA type 3 (SHA3)
Main thread size (M5): 36
Inlet connection diameter: 16 mm (or 18 mm after removing the reducing sleeve)
Ø external air filter connection: 50.8 mm
Ø passage on air filter side: 7 mm
Ø passage on intake manifold side: 12 mm
Total height: 118 mm (without pipe bend)
Total length: 58 mm
Total width: 64 mm

For matching nozzles and alternative air filters, see accessories.

Quality product from the Italian manufacturer Piaggio in original equipment quality.

Original Piaggio spare part number: 244346

Details

ManufacturerPiaggio
MaterialAluminum
Carburetor typeSHA (type 3)
Nominal diameter12 mm
Ø Internal connection16 mm
Ø fuel hose connection6 mm
Nozzle threadM5x0.8 (standard thread)
Nozzle size36
Ø without reducing sleeve18 mm
Ø Inside entrance7 mm
Total length58 mm
Ø Output inside12 mm
Width64 mm
Area of applicationOriginal
Ø Air filter connection50.8 mm
Height110 mm
Mounting typePlug connection clamped
Mixed oil connectionNo
Vacuum connectionNo
Choke controlHand choke
CamouflagedNo

Suitable for the following models

Piaggio

Si
